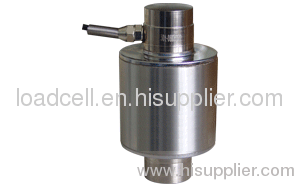

column type load cell (0.5-50T) for truck scale,railway scale,axle load scale

Place of Origin:

Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SV

Capacity
t
10/15/20/25/30/40/50/60
Accuracy class
C2
C3
A5S
A5M
Maximum number of
verification intervals
n m

Capacity
t

10/15/20/25/30/40/50/60

Accuracy class

C2

C3

A5S

A5M

Maximum number of
verification intervals

n max

2000

3000

5000

5000

Minimum load cell
verification interval

v min

Emax/5000

Emax/10000

Emax/15000

Emax/15000

Combined error

(%FS)

≤± 0.030

≤± 0.020

≤± 0.018

≤± 0.026

Creep

(%FS/30min)

≤±0.024

≤± 0.016

≤± 0.012

≤± 0.017

Temperatureeffect
on sensitivity

(%FS/10℃)

≤± 0.017

≤± 0.011

≤± 0.009

≤± 0.013

Temperature effect
on zero

(%FS/10℃)

≤± 0.023

≤± 0.015

≤± 0.010

≤±0.014

Output sensitivity

(mv/v)

2.0 ± 0.002

Input resistance

( Ω )

700 ± 7

Output resistance

( Ω )

703 ± 4

Insulation resistance

(M Ω )

≥ 5000(50VDC)

Zero balance

(%FS)

1.0

Temperature,
compensated

( ℃ )

-10+40

Temperature,allowed

( ℃ )

-35+65

Excitation,
Recommended

(V)

512(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimateoverload

(%FS)

300
